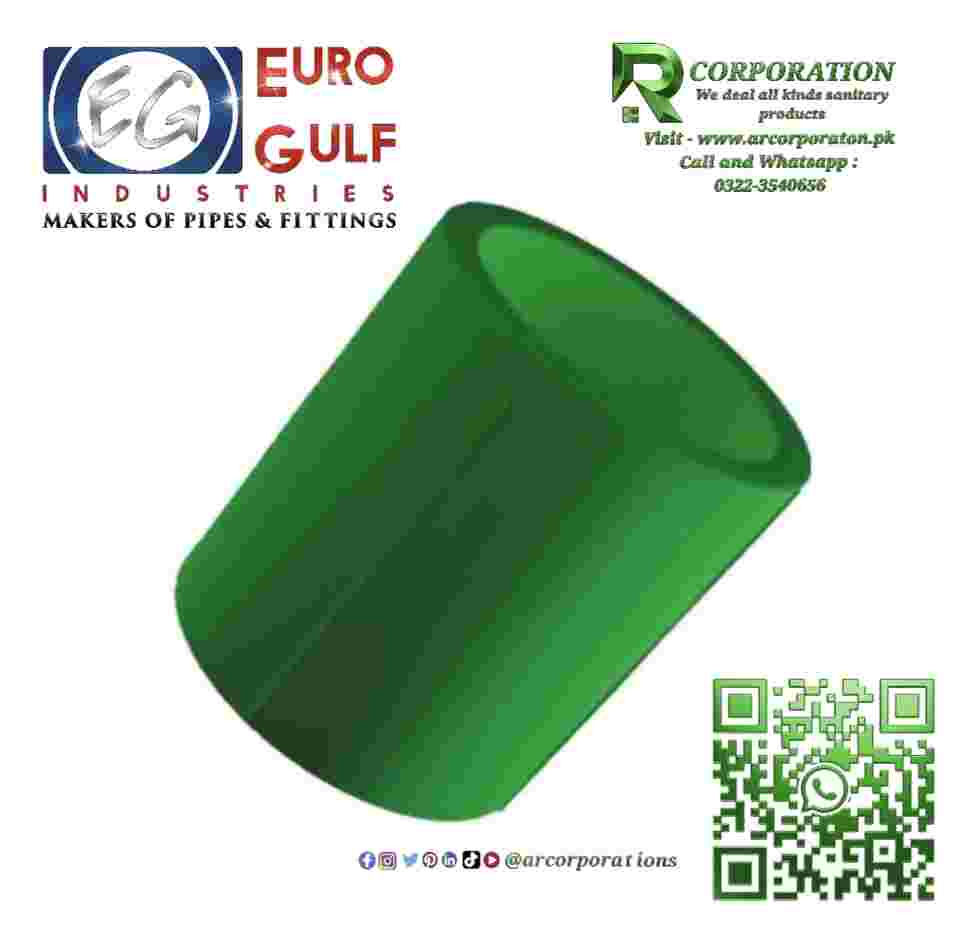

Socket 25mm EG PPRc

Description

Socket 25mm PPRc



EG PPRc pipes and fittings local ,, Food Grade, Plumbing Materials, Dealer  Suppliers in Karachi Pakistan Contact 0321-2248975,



What is Socket 25mm EG PPRc ?



A Socket 25mm EG PPRc PN 25 is a type of pipe fitting made from Polypropylene Random Copolymer (PPRc), designed for secure, leak-proof connections in plumbing systems. The “socket” refers to a female-threaded or push-fit joint that accepts a male pipe end, creating a fusion-welded or mechanical seal. “EG” likely denotes a specific model or brand variant (e.g., “Equal Grip” or a European standard like “Eurogold”), emphasizing even pressure distribution. PN 25 indicates a nominal pressure rating of 25 bar (about 362 psi), making it suitable for high-pressure applications.

These fittings are corrosion-resistant, durable, and ideal for non-toxic water transport. They are commonly used in HVAC (heating, ventilation, and air conditioning) systems for radiant heating, chilled water loops, and ventilation ducts, as well as in hot and cold water supply lines for residential, commercial, and industrial buildings. PPRc material ensures longevity (up to 50+ years) with resistance to scaling, chemicals, and temperature fluctuations up to 95°C (203°F) for hot water.

Specifications

• Material: Polypropylene Random Copolymer (PPRc) – a thermoplastic polymer with high impact resistance, low thermal conductivity, and compliance with standards like DIN 8077/8078 or ISO 15874.
• Size: 25mm (outer diameter; inner diameter varies by wall thickness, typically 20.4mm for PN 25).
• Pressure Rating: PN 25 (25 bar at 20°C; derates to lower pressures at higher temperatures, e.g., 10 bar at 95°C).
• Temperature Range: -20°C to +95°C (-4°F to 203°F) for continuous use; short-term up to 110°C (230°F).
• Dimensions: Standard socket depth of 18-20mm for 25mm pipes; overall length depends on model (e.g., 40-50mm).
• Standards and Certifications: Often meets EN ISO 15874, DIN 16962, or ASTM F2389; food-grade safe (NSF/ANSI 61 compliant for potable water).
• Color: Typically green or white for identification (green for hot water, white for cold).
• Weight: Lightweight, around 50-100g per fitting.
• Additional Features: Smooth inner surface reduces friction loss; UV-stabilized for outdoor use if specified.

Installation

Installation requires basic tools and follows fusion welding or mechanical methods for PPRc systems. Always consult manufacturer guidelines and local plumbing codes (e.g., ASME or EN standards).

1. Preparation:

   • Cut the PPRc pipe squarely using a pipe cutter or hacksaw.
   • Deburr the edges and clean the pipe and socket with a cloth to remove dust or oils.
   • Ensure the pipe end is chamfered slightly for easy insertion.

2. Fusion Welding (Most Common for PPRc):

   • Use a PPR welding machine with a 25mm socket heater.
   • Heat the socket and pipe end simultaneously for 5-10 seconds (exact time depends on ambient temperature; refer to tool manual).
   • Insert the pipe into the socket fully and hold without twisting for 10-15 seconds to cool and set the weld.
   • Allow 5-10 minutes for full curing before pressure testing.

3. Mechanical (Push-Fit) Variants:

   • If it’s a push-fit EG model, align and push the pipe into the socket until it clicks or locks.
   • No welding required, but ensure O-ring seals are intact for leak prevention.

4. Safety and Tips:

   • Work in a well-ventilated area; avoid overheating.
   • Test for leaks with air or water pressure (up to PN rating).
   • For HVAC integration, insulate joints to prevent heat loss.
   • Common mistakes: Overheating causes deformation; underheating leads to weak bonds.

Usage

These fittings are versatile for both hot and cold water supply and HVAC applications:

• Hot and Cold Water Supply: Used in potable water lines, underfloor heating, and distribution manifolds. They handle thermal expansion well, reducing burst risks in fluctuating temperatures.
• HVAC Systems: Ideal for chilled water pipes, radiator connections, and ventilation conduits. In HVAC, they support energy-efficient systems by minimizing heat transfer losses (thermal conductivity ~0.2 W/mK).
• Applications: Residential plumbing (e.g., kitchen/bathroom fixtures), commercial buildings (e.g., hotels, offices), and industrial setups (e.g., process water). Not recommended for compressed air or aggressive chemicals without verification.
• Advantages: Easy to install, recyclable, and cost-effective compared to metal alternatives. They reduce noise from water hammer and are maintenance-free.
• Limitations: Avoid direct sunlight exposure without UV protection; not suitable for temperatures exceeding 95°C long-term or for potable water in some regions without certification.
