Reducing Tee 110x63mm Dadex PPRc

Description

Reducing Tee 110x63mm



DADEX , PPRc, Food graded third generation Poly propylene  materials. Sizes ranging from 25mm to 110mm diameter. supplier contact 0322-3540656



What is Reducing Tee 110x63mm Dadex PPRc ?



A Reducing Tee 110×63 mm Dadex PPRc PN 25 is a pipe fitting made of PPRc (Polypropylene Random Copolymer) used to:

• Branch a main piping line into a smaller diameter outlet.

• Connect 3 pipes — two of one size (110 mm) and one of a reduced size (63 mm).

• This is called a reducing tee because one of the three connections is a smaller diameter.

Key points:

• “110×63 mm” denotes that it connects a 110 mm pipe to a 63 mm pipe.

• PN 25 means the fitting is rated for up to 25 bar (≈ 362 psi) of pressure at 20 °C, suitable for high-pressure applications.

This fitting is specifically used in HVAC (heating, ventilation, air conditioning) systems and hot/cold water supply piping.

---

🧱 Material & Standards

Material:

• Made of PPRc (Polypropylene Random Copolymer) — a durable thermoplastic engineered for pressure piping.

Why PPRc?

• Resistant to heat and pressure.

• Corrosion-free (won’t rust like metal pipes).

• Smooth interior for better flow and less friction.

• Long service life (typically 50+ years).

Common Standard:

• Most PPRc fittings are manufactured per DIN 16962 (international standard for PPR fittings) and rated PN 25.

---

📊 Specifications (Typical)

Note: Exact specs for the Dadex brand may vary slightly but follow the same PN 25 rating and PPRc standards.

---

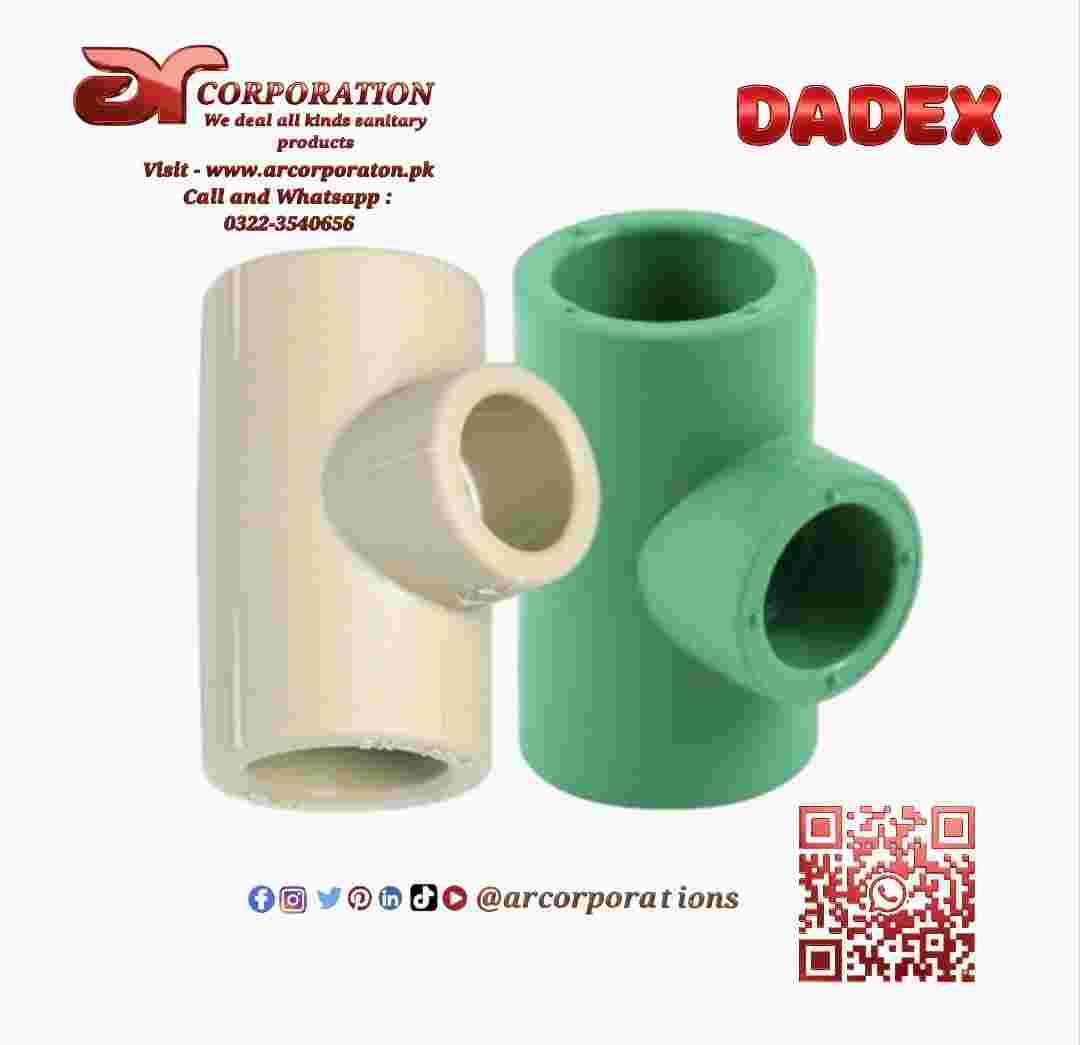

🧩 Description & Features Reducing Tee 110x63mm Dadex PPRc

Structure:

• T-shaped fitting with three ports.

• Two ports match the main pipeline diameter (110 mm).

• One port matches the branch line diameter (63 mm).

Properties:
✅ High pressure and temperature resistance
✅ Corrosion / scale resistance
✅ Hygienic and safe for potable water
✅ Smooth internal flow
✅ Lightweight & durable
✅ Low thermal and electrical conductivity

Typical uses include:

• Domestic & commercial hot and cold water distribution.

• Branching to smaller lines (e.g., moving from a main supply to a sub-line).

• HVAC systems — hot water heating, chilled water distribution.

• Industrial fluid systems where corrosion resistance and pressure ratings matter.

---

🛠️ Installation

Tools Needed:

• PPR hot-fusion welding tool (heater with correct dies)

• Pipe cutter (for clean ends)

• Deburring tool or sharp knife

• Marker and measuring tape

Step-by-Step Installation:

1. Measure & Cut Pipes:
   Mark the pipes that will connect to the tee (110 mm main lines and 63 mm branch). Cut cleanly and squarely.

2. Clean Pipe Ends:
   Remove any burrs & dirt to ensure a tight joint.

3. Heat Fusion Welding:

   • Preheat fusion tool to the manufacturer’s recommended temperature (~260 °C typical).

   • Insert the pipe end and the tee socket onto the heating tool simultaneously.

   • Heat for the correct time (based on diameter).

4. Join Pipes:

   • Quickly insert the heated pipe into the fitting to full depth.

   • Align and press gently — do not rotate.

   • Hold until the plastic cools and sets (few seconds).

5. Cooling & Support:
   Let joints cool before pressurizing. Support piping to prevent stress.

6. Testing:
   Pressurize system and check for leaks according to local plumbing codes.

Safety Tips:

• Wear gloves and eye protection during welding.

• Avoid twisting joints while cooling.

• Allow expansion loops for long runs subject to temperature changes.

---

🚰 Usage in HVAC & Water Supply

In Water Supply Systems

• Main to branch connections: Diverts water from large distribution lines to smaller pipelines (e.g., to bathrooms or kitchen risers).

• Works for hot and cold potable water safely due to food-grade PPRc.

In HVAC Installations

• Branches heating or chilled water loops in HVAC piping.

• Good for both hydronic heating systems (hot water) and chilled water distribution.

• PPRc’s heat resistance makes it suitable for heating circuits up to ~95 °C.

Typical Projects:

• Residential apartments

• Commercial buildings

• Light industrial piping

• Fan coil units/air handlers water circuits
