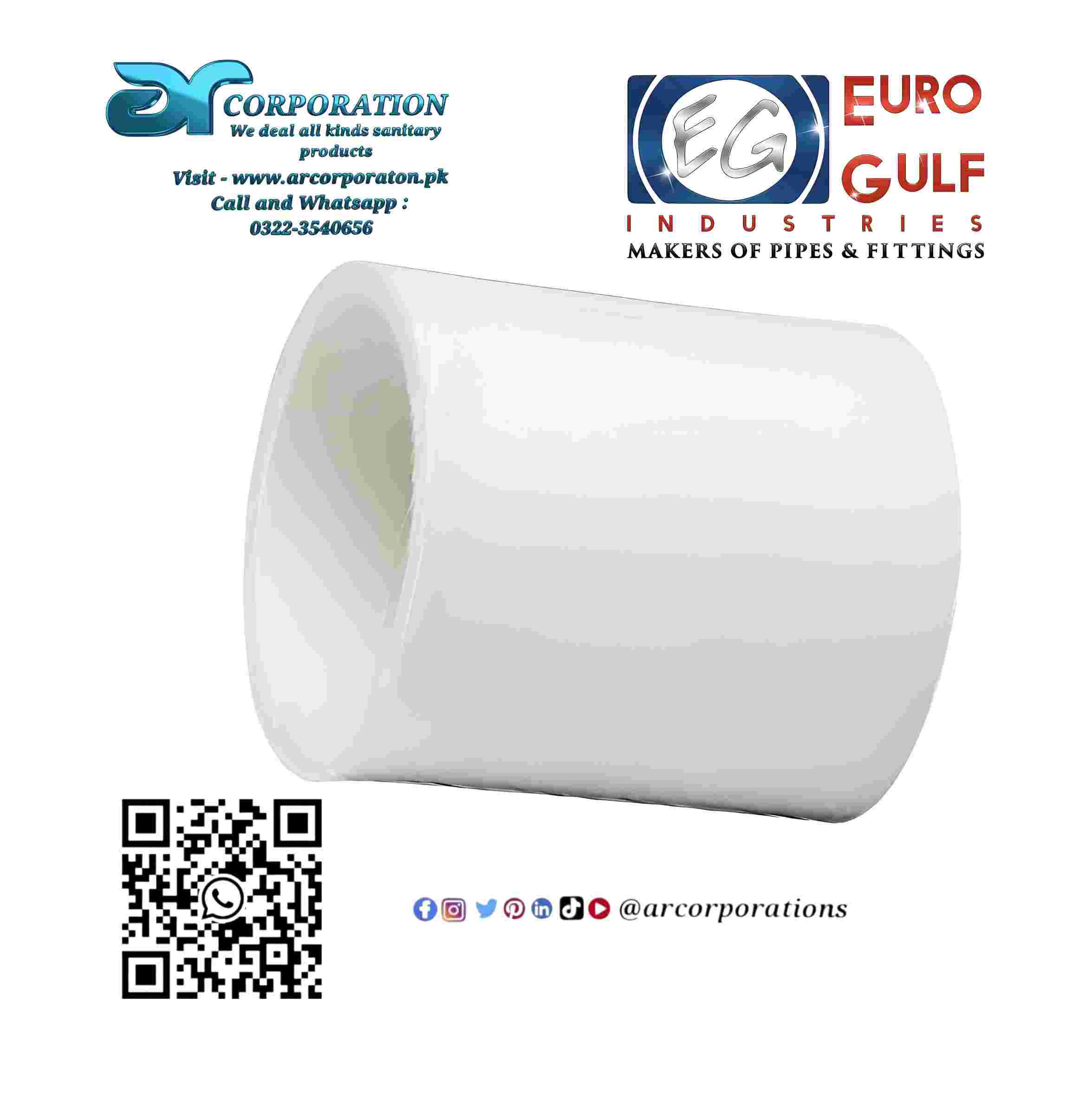

Euro Gulf upvc Socket Coupler 4″

Description

upvc Socket Coupler 4″



Euro Gulf socket local Dealer Suppliers in Karachi Contact 0321-2248975 ASTM uPvc Sch-40 Pressure Fittings, Drain sewer ventilation



What is Euro Gulf upvc Socket Coupler 4″ ?



Description

A Euro Gulf UPVC Socket Coupler (4″ Sch 40) is a high-quality, un plasticized polyvinyl chloride (UPVC) fitting designed for joining UPVC pipes in plumbing and HVAC systems. UPVC is a rigid, non-toxic plastic material known for its durability, corrosion resistance, and smooth interior surface that minimizes friction and buildup. This coupler features a socketed design on both ends, allowing for secure, leak-proof connections via solvent cement welding. It’s specifically engineered for applications involving hot and cold water supply (up to 60°C) and HVAC systems, where it handles moderate pressure and temperature variations without degrading. The “Euro Gulf” branding indicates it’s produced by Euro Gulf Industries or a similar manufacturer, often sourced from regions like the Middle East, and it complies with international standards for reliability in residential, commercial, and industrial settings.

Specifications

• Material: UPVC (Un plasticized Polyvinyl Chloride), free from lead and other harmful additives, making it safe for potable water.
• Size: 4 inches (nominal diameter, approximately 101.6 mm outer diameter).
• Schedule: Sch 40 (indicates a wall thickness of about 6.02 mm for the pipe it connects to, providing higher pressure resistance compared to Sch 20).
• Dimensions:
  • Length: Typically 150-200 mm (varies by manufacturer).
  • Socket Depth: Around 50-60 mm per end for proper engagement.
• Pressure Rating: Up to 150-200 PSI (depending on temperature; consult manufacturer for exact ratings).
• Temperature Range: Suitable for cold water (0-20°C) and hot water up to 60°C; not recommended for continuous exposure above this to avoid softening.
• Standards Compliance: Meets ASTM D1785, ASTM D2466, or equivalent ISO standards (e.g., ISO 4422) for UPVC pipes and fittings. It may also align with local codes like BS 3505 or DIN 8063.
• Color: Usually white or gray for easy identification in plumbing systems.
• Weight: Approximately 0.5-1 kg, lightweight for easy handling.
• Additional Features: Solvent-weld compatible, UV-resistant for outdoor use, and resistant to chemicals like acids and alkalis commonly found in water systems.

Installation

Installation of a UPVC Socket Coupler requires basic plumbing tools and should be done by a qualified professional to ensure safety and longevity. Follow these steps:

1. Preparation:

   • Cut the UPVC pipes to the required length using a fine-toothed saw or pipe cutter. Ensure clean, square cuts.
   • Deburr the pipe ends and chamfer the outer edge slightly for better solvent flow.
   • Clean the pipe ends and coupler sockets with a primer (e.g., UPVC cleaner) to remove dirt, oils, or residues.

2. Assembly:

   • Apply a thin, even layer of UPVC solvent cement (e.g., a medium-bodied cement for Sch 40) to the pipe end and inside the coupler socket. Work quickly, as cement sets in 10-30 seconds.
   • Insert the pipe into the socket fully, twisting slightly (about 1/4 turn) to distribute the cement evenly. Hold for 30-60 seconds to allow initial bonding.
   • Wipe away excess cement immediately to avoid drips.

3. Curing and Testing:

   • Allow the joint to cure for at least 1-2 hours before pressurizing (full cure may take 24 hours).
   • Test for leaks by pressurizing the system and inspecting joints. Use thread seal tape or Teflon if adapting to threaded components.
   • Avoid bending or stressing the joint during curing.

Tips: Work in a well-ventilated area, wear gloves, and follow manufacturer guidelines. For high-pressure systems, use reinforced couplers if needed. Not suitable for direct burial without protection.

Usage

This coupler is primarily used in:

• Hot and Cold Water Supply: Connecting pipes in residential or commercial plumbing for potable water distribution, including sinks, showers, and irrigation. Its smooth bore reduces pressure loss and prevents bacterial growth.
• HVAC Systems: Joining ducts or conduits for air conditioning, heating, and ventilation lines, where it handles air flow and minor moisture without corrosion.
• General Applications: Drainage, wastewater, and chemical transport in non-pressurized systems. It’s ideal for environments with high humidity or exposure to water, as UPVC doesn’t rust like metal alternatives.

Advantages: Cost-effective, easy to install, and long-lasting (up to 50+ years with proper maintenance). However, avoid use in direct sunlight for extended periods or with incompatible chemicals. For specific project needs, consult Euro Gulf’s technical data sheet or a local plumbing code. If you have a product code or region-specific details, I can refine this further.
