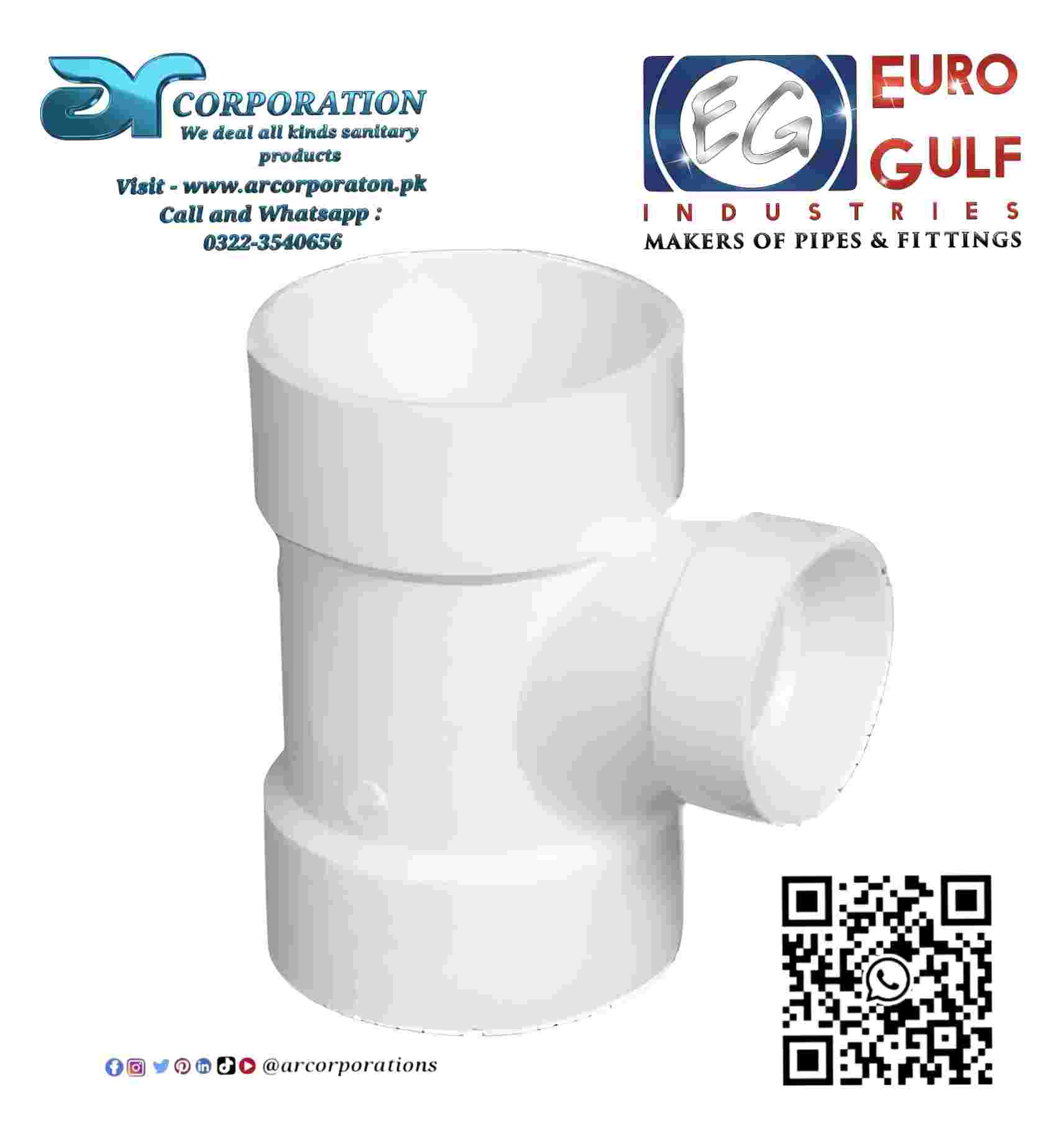

upvc Red Tee 4×3″
Euro Gulf local Suppliers in Karachi Contact 0321-2248975 ASTM uPvc Sch-40 Pressure Fittings, Drain sewer ventilation
What is Euro Gulf upvc Red Tee 4×3″ ?
Euro Gulf uPVC Red Tee 4×3″ SCH 40 is a reducing tee fitting designed for HVAC systems and hot/cold water supply lines. It is made from un plasticized polyvinyl chloride (uPVC), built to ASTM SCH-40 standards, and used to connect pipes of different diameters (4″ to 3″) in plumbing, drainage, and HVAC piping networks.
Product Description
- Brand: Euro Gulf Industries (Pakistan-based manufacturer of uPVC, PPR-C, PE, CPVC pipes and fittings)
- Type: Reducing Tee (4″ × 3″)
- Material: uPVC (Un plasticized Polyvinyl Chloride)
- Standard: ASTM SCH-40 Pressure Fittings
- Application: Plumbing, HVAC ducting, hot & cold water supply, drainage, sewer, and ventilation systems.
- Color: Typically white/grey (sometimes marked red for identification).
Specifications
| Feature | Details |
|---|---|
| Size | 4″ × 3″ (reducing tee) |
| Material | uPVC (rigid, non-toxic, corrosion-resistant) |
| Pressure Rating | SCH-40 (suitable for medium pressure applications) |
| Temperature Range | Typically up to 60°C for continuous use (uPVC not recommended for very high temperatures) |
| Standards | ASTM D-2467 (pressure fittings), ISO certified manufacturing |
| Usage | HVAC piping, potable water supply, drainage, sewerage, ventilation |
Key Features
- Corrosion Resistant: uPVC does not rust or corrode, making it ideal for water supply.
- Smooth Internal Surface: Reduces friction losses and prevents scaling.
- Lightweight & Easy to Install: Compared to metal fittings.
- Non-toxic & Safe: Suitable for potable water.
- Durability: Long service life in plumbing and HVAC systems.
Installation Guidelines
- Preparation:
- Ensure pipes are cut square and edges are smooth.
- Clean pipe ends and fitting sockets.
- Joining Method:
- Use solvent cement (PVC adhesive) for secure bonding.
- Apply primer (if recommended) before cement.
- Insert pipe into fitting socket with a quarter-turn twist for even distribution.
- Curing:
- Allow joint to set for at least 15–30 minutes before handling.
- Full curing may take 24 hours depending on temperature/humidity.
- Testing:
- Pressure test the system before commissioning.
Usage in HVAC & Water Supply
- HVAC Systems: Used to branch ducted water lines for cooling/heating systems.
- Hot & Cold Water Supply: Suitable for domestic and commercial plumbing networks.
- Drainage & Ventilation: Commonly applied in sewerage and vent piping.
- Reducing Function: Connects larger 4″ main line to a 3″ branch line efficiently.
⚠️ Considerations & Limitations
- Temperature Limit: uPVC SCH-40 is not suitable for very high-temperature fluids (>60°C). For higher temperatures, CPVC or PPR-C is preferred.
- Pressure Limit: Designed for moderate pressure; not ideal for industrial high-pressure steam or chemical lines.
- Proper Adhesive Use: Incorrect solvent cement application can lead to leaks.
