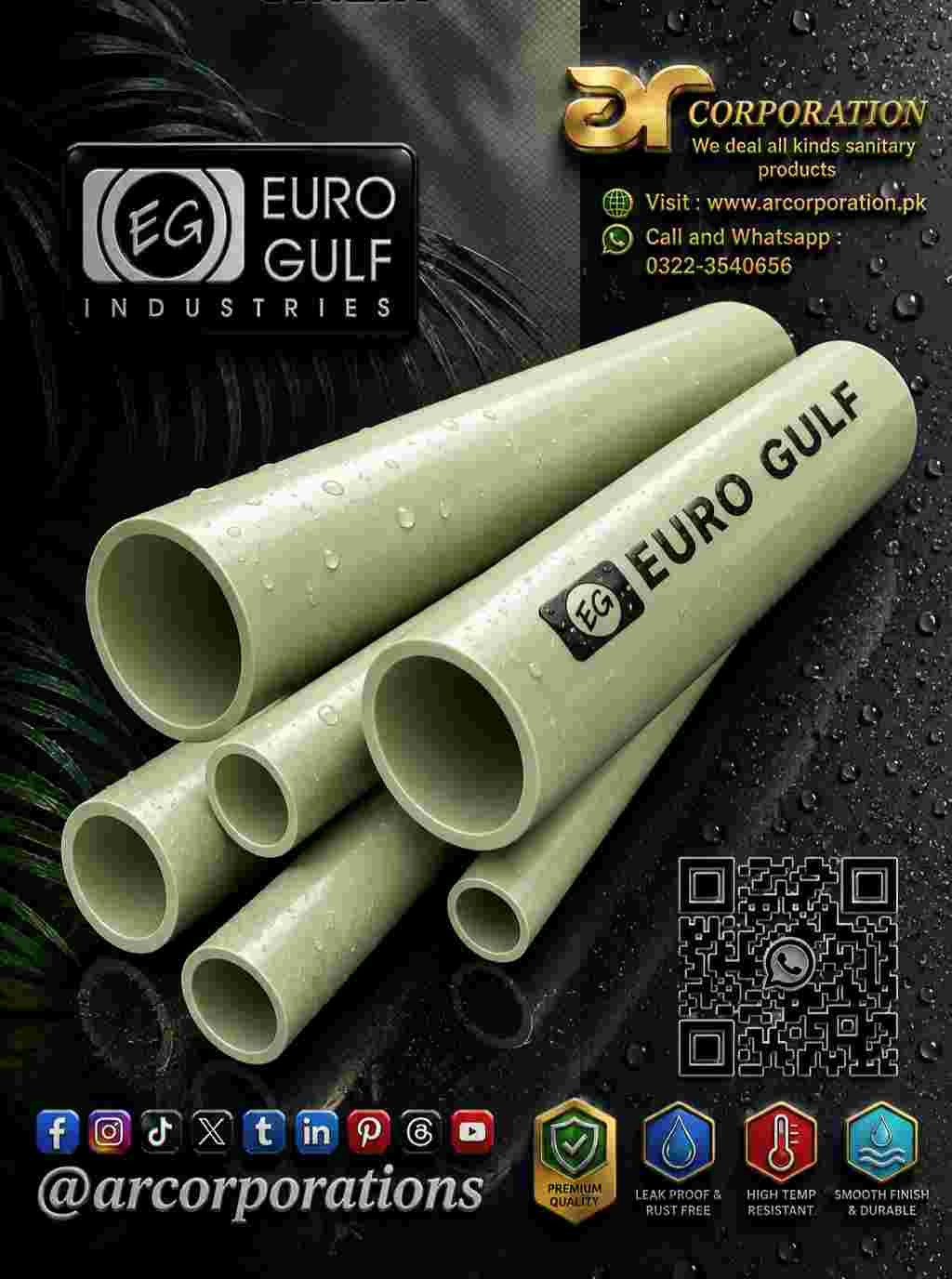

Euro Gulf upvc pipe 4″ SDR41

upvc pipe 4″ SDR41, Drain, Sewer, Ventilation, Euro Gulf , pakistan. ASTM uPvc pipes SDR series. Ideal plumbing materials for Drain, rain water, sewerage system and ventilation

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

upvc pipe 4″ SDR41



Euro Gulf local Suppliers Distributor Dealer online shop in Karachi Contact 0321-2248975 ASTM uPvc pipes sdr-41, Drain sewer ventilation



What is Euro Gulf upvc pipe 4″ SDR41 ?



Euro Gulf uPVC (Unplasticized Polyvinyl Chloride) pipes are a highly trusted choice in Pakistan’s plumbing and sanitary market. Manufactured by Euro Gulf Industries, these pipes are certified by PCSIR, PSQCA, and the Pakistan Engineering Council (PEC), using high-grade resin sourced locally from Engro Polymer along with imported raw materials.

The 4″ SDR41 configuration is specifically designed as a lightweight, highly efficient solution for gravity-fed and low-pressure systems.

Description & Material Properties

The 4″ SDR41 pipe is a thin-walled, high-capacity uPVC pipe. SDR41 stands for Standard Dimensional Ratio 41, meaning the outside diameter of the pipe is exactly 41 times the thickness of its wall. Because the walls are thinner compared to Schedule 40 or Schedule 80 pipes, it provides a larger internal bore (inside diameter), maximizing fluid flow efficiency while keeping material weight and costs minimal.

  • Corrosion Resistance: Immune to chemical, electrolytic, and atmospheric corrosion. It will not rust or pit when buried in aggressive soils.

  • Frictionless Inner Bore: Extremely smooth internal walls prevent the deposition of scale, slime, or chemical buildup, ensuring consistent flow rates over its 50-year design life.

  • Flame Retardancy: uPVC is naturally self-extinguishing and does not support combustion.

Technical Specifications

The standard specifications for the Euro Gulf 4-inch SDR41 pipe are outlined below:

Parameter Specification Details
Nominal Diameter 4 inches (114.30 mm Outside Diameter)
SDR Rating SDR 41
Standard Length 6 Meters (approx. 19.6 feet) per length
Joint Type Solvent Cement Joint (SC/J) with integrated socket end
Color White / Light Grey
Pressure Rating Low-pressure / Gravity-fed only (typically rated around 4.5 to 7 Bar max depending on temperature, though primarily used for non-pressure applications)
Applicable Standards Conforms to ASTM D-2241 / ISO dimensional guidelines

Key Applications & Usage

Because of its wall profile, SDR41 is strictly intended for non-pressure or low-pressure gravity systems. Using it in high-pressure main supply lines will cause system failure.

  • Building Drainage & Sewerage: Ideal for soil, waste, and residential/commercial rainwater downtake pipes.

  • Stormwater Channels: Used to channel heavy rainwater runoff away from building foundations and roofs.

  • Agricultural Irrigation: Excellent for low-pressure field distribution lines, gravity channels, and farm drainage.

  • Cable Ducting: Frequently deployed as protective conduit ducting for underground telecom and electrical wiring due to its non-conductive properties.

Installation Guidelines

Proper installation preserves the structural integrity of thin-walled SDR41 pipes, especially when buried.

1.Cutting and Chamfering:Preparation.

Cut the pipe square using a fine-toothed saw. Remove all internal and external burrs with a deburring tool. File a 10 to 15-degree chamfer (bevel) on the outer edge of the pipe end to prevent it from scraping the solvent cement off the socket during insertion.

2.Cleaning and Dry Fit:Alignment check.

Wipe the outside of the pipe end and the inside of the matching fitting socket with a clean, dry cloth to remove dirt, moisture, and grease. Test the dry fit; the pipe should easily enter the socket about one-third to two-thirds of the way.

3.Applying Solvent Cement:Jointing.

Apply a thin, even layer of high-quality uPVC solvent cement to the inside of the fitting socket, and a slightly thicker, uniform layer to the outer chamfered end of the pipe. Work quickly before the cement begins to dry.

4.Insertion and Set:Bonding.

Immediately insert the pipe into the fitting socket until it bottoms out. Give it a quarter-turn during insertion to distribute the solvent cement evenly. Hold the joint firmly together for 10 to 15 seconds to prevent the pipe from backing out. Wipe away any excess cement bead from around the edge.

5.Trenching and Backfilling:For underground layout.

When burying SDR41, ensure the trench bed is continuous, smooth, and free of rocks or sharp stones. Cradle the pipe in a 4-inch layer of compacted sand or fine soil aggregate to provide uniform support and protect the thin walls from ground crushing loads.
