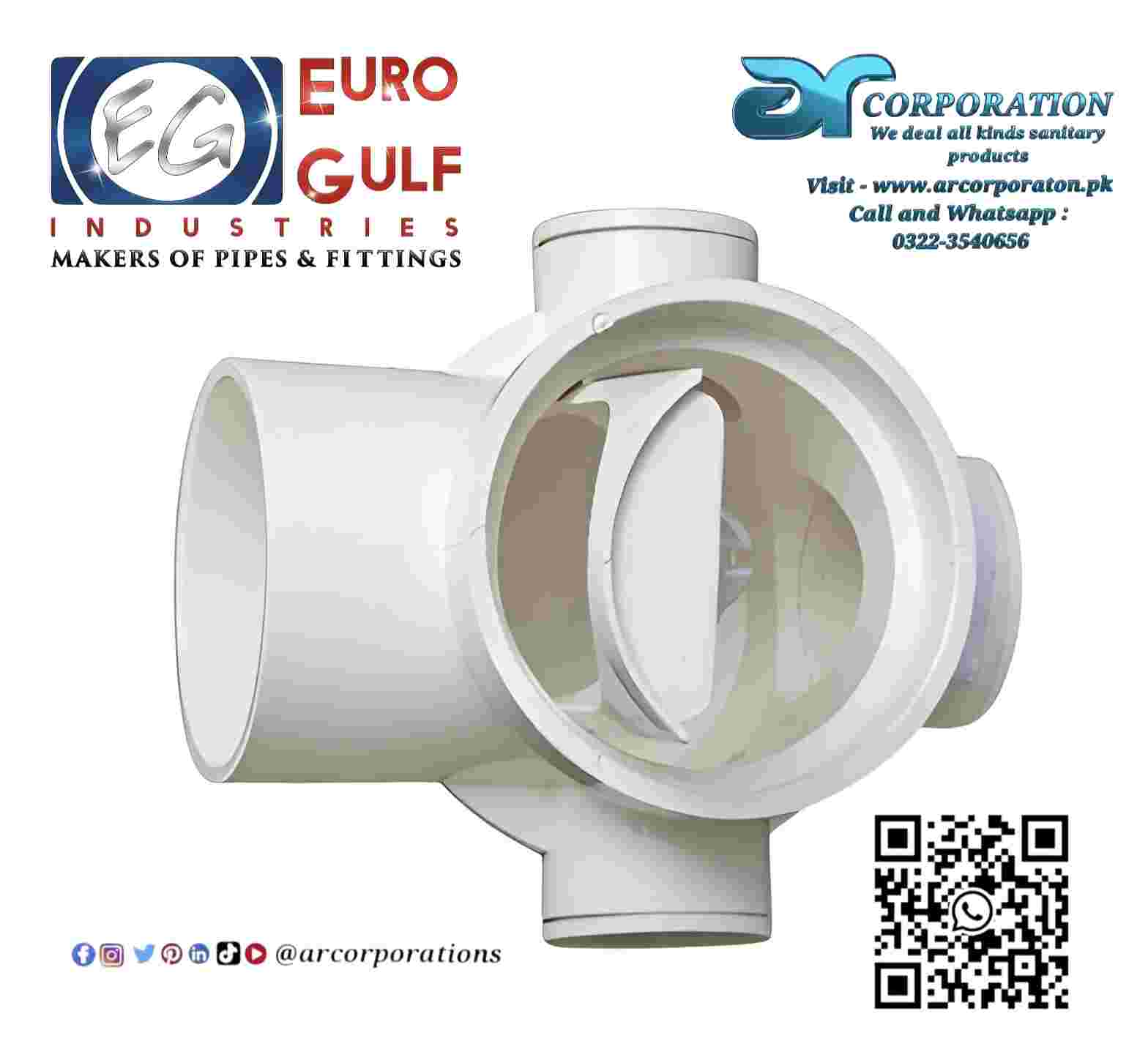

Euro Gulf upvc Floor Trap 3″

Description

UPVC floor trap



Euro Gulf local Suppliers Dealer  in Karachi Contact 0321-2248975 ASTM uPvc Sch-40 Pressure Fittings, Drain sewer ventilation



What is Euro Gulf upvc Floor Trap 3″ ?



The Euro Gulf uPVC Floor Trap (3″ Schedule 40) is a high-performance drainage component designed to manage wastewater while preventing sewer gases from entering living or working spaces.

It is important to clarify a technical distinction regarding your query: while uPVC is excellent for cold water and drainage, it is not suitable for hot water supply (typically limited to 45°C–60°C). For hot water, CPVC or PPR pipes are the industry standard.

---

1. Description & Detailed Information

The floor trap (often called a “multi-trap” or “gully trap”) acts as a collection point for various waste lines (like from a shower, sink, or AC condensate) before directing them into the main 3-inch drain line.

• Material: Un plasticized Polyvinyl Chloride (uPVC), which is more rigid and durable than standard PVC.

• Water Seal: It maintains a permanent “water seal” that acts as a barrier against foul odors, insects, and bacteria from the sewage system.

• Debris Collection: The 3″ Sch 40 version typically features a deep-bowl design to trap heavy sediments, preventing downstream clogs.

---

2. Technical Specifications (Schedule 40)

The “Schedule 40” designation refers to the wall thickness and pressure capability of the fitting.

Feature	Specification
Nominal Size	3 Inches (Main Outlet)
Standard	ASTM D2466 (Schedule 40)
Wall Thickness	Approx. 5.5 mm (for 3″ nominal)
Temperature Limit	Max 60°C (140°F) for intermittent flow
Chemical Resistance	High (resistant to acids, bases, and salts)
Connection Type	Solvent Weld (requires PVC glue/cement)

---

3. Usage & Applications

HVAC Systems

In HVAC, these traps are used for Condensate Drainage. Air conditioning units produce significant moisture; the floor trap provides a safe point to dump this water into the building’s drainage system without allowing smells to travel back up the AC pipes.

Water Supply (Cold Only)

• Cold Water: Suitable for drainage and non-pressurized greywater systems.

• Hot Water Warning: Do not use uPVC for pressurized hot water supply. High temperatures cause uPVC to soften and lose its structural integrity, leading to leaks or bursts.

---

4. Installation Guide

Proper installation is critical to ensure the trap remains “primed” (filled with water) and does not leak.

1. Preparation: Cut the 3″ pipe square and remove all burrs.

2. Dry Fit: Assemble the trap and connecting pipes without glue first to ensure proper slope (minimum 1/8″ to 1/4″ per foot).

3. Cleaning: Clean the socket of the trap and the exterior of the pipe with a PVC primer.

4. Solvent Welding: Apply a uniform layer of uPVC Solvent Cement to both surfaces.

5. Joining: Insert the pipe into the trap with a 1/4 turn to spread the glue. Hold for 30 seconds.

6. Positioning: Ensure the trap is level so the water seal stays at the correct depth.

Pro Tip: During construction, cover the top of the floor trap with a plastic cap or tape to prevent cement or debris from falling inside and blocking the seal.

---

5. Maintenance

• Cleaning: Periodically remove the floor grate and clear out hair or debris trapped in the bowl.

• Refilling: If a floor trap is in a room rarely used (like a guest bathroom), the water seal may evaporate. Pour a cup of water down the drain once a month to “prime” the trap and block odors.
