Description

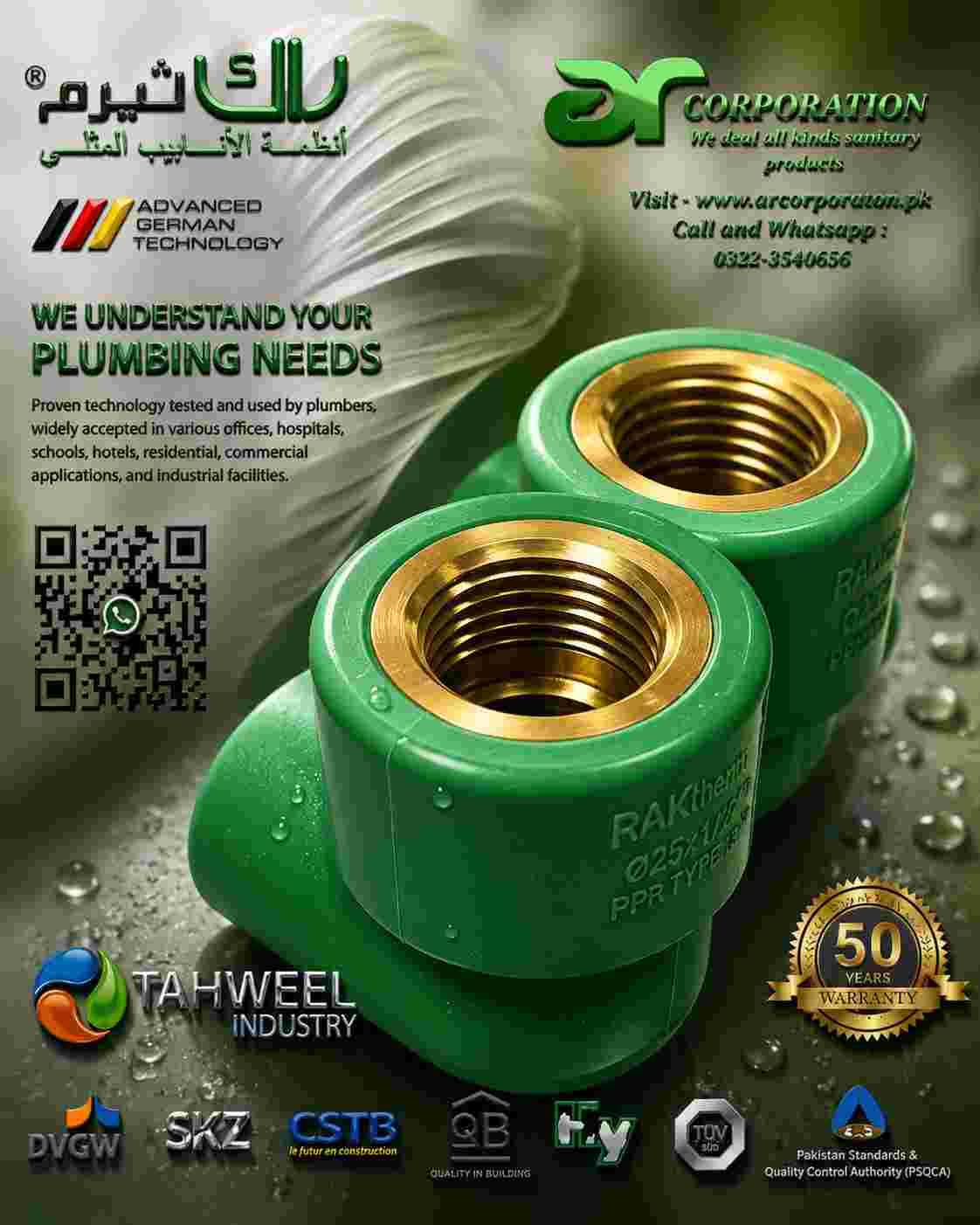

Elbow Female 25×3/4″ Brass
RAKtherm imported PPRc, Food graded third generation Poly propylene Random with Co-polymer
materials. contact 0322-3540656
What is Elbow Female 25×3/4″ Brass RAKtherm PPRc ?
The RAKtherm PPRc Elbow Female 25 × 3/4″ Brass PN 25 is a combination PPR fitting designed to connect a 25 mm PPR pipe to a 3/4-inch male threaded metal fitting while changing the pipe direction by 90°. It combines a PPRc body with a high-quality brass female threaded insert, making it ideal for connecting taps, valves, shower mixers, water meters, and other threaded plumbing fixtures in hot and cold water systems. RAKtherm PPR piping systems are designed for potable water, HVAC, and other pressurized piping applications.
Product Description
- Product Name: Elbow Female Brass
- Brand: RAKtherm
- Material: Polypropylene Random Copolymer (PPRc) with brass female insert
- Size: 25 mm × 3/4″
- Pressure Rating: PN 25 (25 bar nominal pressure)
- Connection Type:
- 25 mm socket fusion (PPR side)
- 3/4″ BSP female brass thread (metal side)
- Country of Import: United Arab Emirates (UAE)
- Application: Hot and cold potable water, HVAC, plumbing, and industrial piping systems.
Key Features Elbow Female 25×3/4″ Brass RAKtherm PPRc
- High-quality food-grade PPRc material suitable for drinking water.
- Durable brass female threaded insert for secure connections to metal fittings.
- Heat fusion technology creates a permanent, leak-proof joint on the PPR side.
- Excellent resistance to corrosion, rust, scaling, and most chemicals.
- Suitable for both hot and cold water applications.
- Lightweight, easy to install, and maintenance-free.
- Long service life of up to 50 years under recommended operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | RAKtherm |
| Material | PPRc with Brass Insert |
| Pipe Size | 25 mm |
| Thread Size | 3/4″ Female BSP |
| Direction | 90° Elbow |
| Pressure Rating | PN 25 |
| Joint Method | Socket Fusion + Female Thread |
| Working Temperature | Continuous up to 90°C, short-term up to 100°C |
| Standards | ISO 15874 / DIN 8077 & DIN 8078 (typical PPR standards) |
| Color | Green (typical RAKtherm finish) |
Applications
This fitting is widely used in:
- Domestic hot and cold water supply systems.
- HVAC heating and chilled water networks.
- Bathroom and kitchen plumbing.
- Water heater and geyser connections.
- Shower mixers and wash basin mixers.
- Water meters and control valves.
- Hotels, hospitals, schools, commercial buildings, and residential projects.
- Industrial and process water distribution systems.
Installation Procedure
- Cut the 25 mm PPR pipe square using a PPR pipe cutter.
- Clean and deburr the pipe end.
- Heat the pipe and socket of the fitting simultaneously with a PPR fusion welding machine (typically 260°C).
- Insert the pipe fully into the fitting without twisting and hold until the joint cools.
- Wrap PTFE (Teflon) tape or an approved thread sealant around the 3/4″ male threaded fitting.
- Tighten the male threaded fitting into the brass female thread using the correct wrench. Avoid overtightening.
- Allow the fusion joint to cool completely before pressure testing the system.
Usage Guidelines
- Use only with 25 mm PN 25 PPR pipes.
- Connect only compatible 3/4″ BSP male threaded fittings.
- Avoid excessive tightening that could damage the brass insert.
- Support pipelines properly to minimize stress on threaded joints.
- Perform a hydrostatic pressure test before commissioning the system.
Advantages
- Provides a reliable transition from plastic piping to metal threaded fixtures.
- Leak-proof socket fusion connection.
- Strong brass threads offer excellent mechanical strength.
- Corrosion and scale resistant for long-term performance.
- Hygienic, non-toxic, and safe for potable drinking water.
- Suitable for demanding HVAC, residential, commercial, and industrial water supply systems with minimal maintenance.
