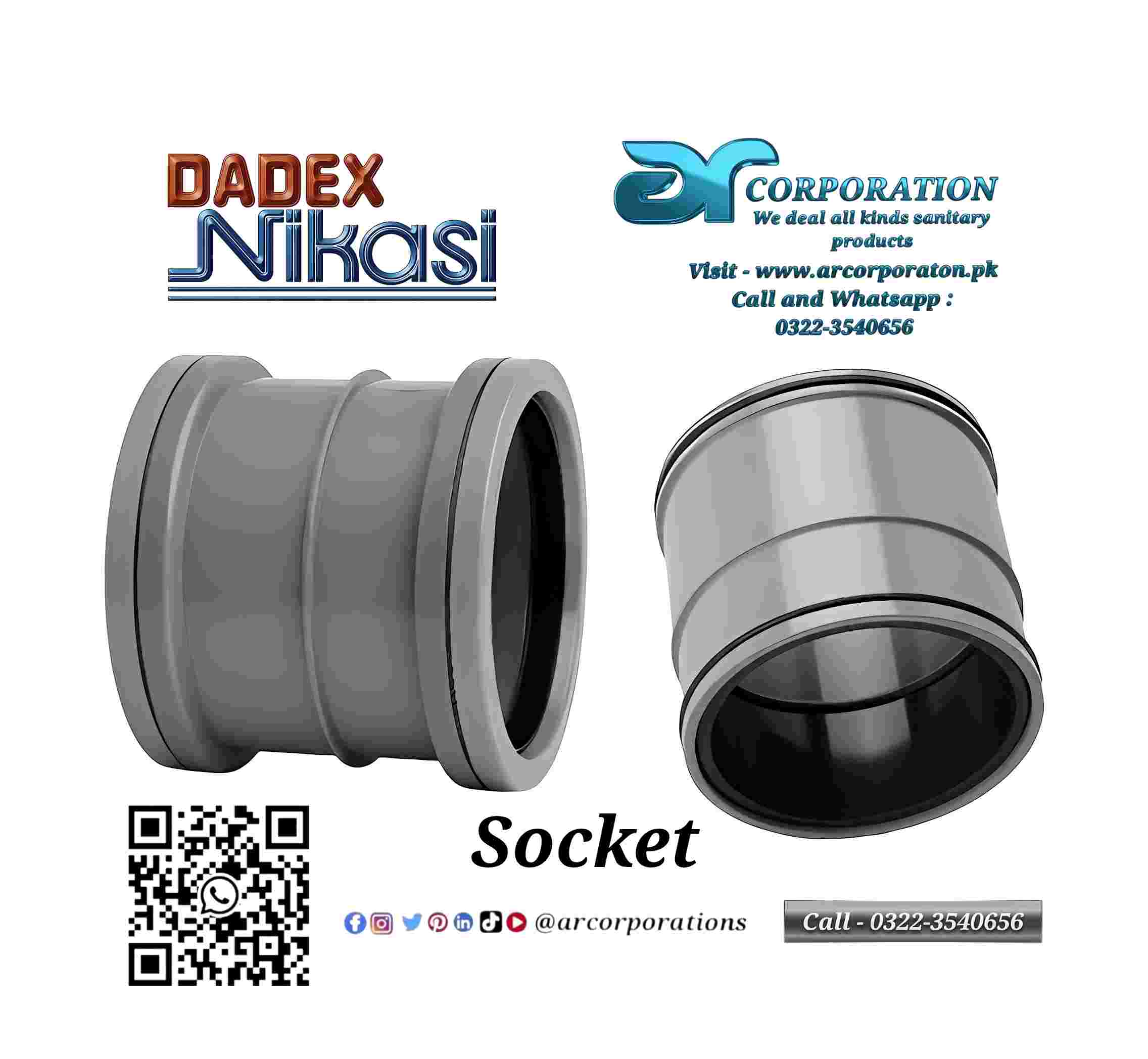

Dadex Nikasi upvc Socket 110mm

Description

upvc Socket 110mm



Dadex Nikasi  local Manufacturer Suppliers in Islamabad Pakistan Contact 0322-3540656 uPvc Pressure Fittings, Drain sewer ventilation



What is Dadex Nikasi upvc Socket 110mm ?



Dadex Nikasi is a premium brand in Pakistan and surrounding regions, specifically engineered for soil, waste, and vent (SWV) applications. The 110mm size (approximately 4 inches) is the industry standard for main sewer lines and soil stacks in residential and commercial plumbing.

---

1. Dual Jointing Systems

The Nikasi range is unique because it often offers two distinct methods for connecting pipes and fittings:

• Push-Fit (Rubber Ring Joint):

  • Mechanism: Uses a factory-fitted EPDM rubber seal inside the socket.

  • Advantage: Allows for thermal expansion and contraction. It is faster to install and can be tested immediately.

  • Best For: Vertical stacks and long horizontal runs where building movement or temperature changes occur.

• Solvent Cement Joint:

  • Mechanism: Uses a chemical welding process (UPVC solvent) to fuse the pipe and socket together.

  • Advantage: Creates a permanent, monolithic leak-proof bond.

  • Best For: Compact areas or underground installations where a rigid, non-moving joint is preferred.

---

2. Technical Specifications (110mm)

Nikasi fittings are manufactured to meet international standards (usually BS 4514 or EN 1329).

Feature	Specification
Material	Unplasticized Polyvinyl Chloride (UPVC)
Nominal Diameter	110mm (External Diameter)
Color	Usually Grey (standard for Nikasi)
Pressure Rating	Designed for non-pressure (gravity flow) applications
Temperature Resistance	Continuous discharge up to 60°C; short-term up to 90°C
Chemical Resistance	High resistance to acids, alkalis, and domestic detergents

---

3. Applications & Usage

Nikasi designed the 110mm range for its Drainage System, which covers three main areas:

• Soil (Waste): Carrying discharge from water closets (toilets) to the main sewer. The smooth internal bore prevents blockages and “sludge” buildup.

• Sewerage: Underground piping that transports waste from the building to the septic tank or municipal sewer line.

• Ventilation: Essential for balancing air pressure within the plumbing system.

  This sentence is already in active voice. Here are a few stronger active-voice rewrites you can use:

  • The 110mm vent pipe vents sewer gases through the roof, preventing siphonage that would pull water from traps.
  • The 110mm vent pipe vents sewer gases through the roof to prevent siphonage in traps.
  • By venting sewer gases through the roof, the 110mm vent pipe prevents siphonage.
  • The 110mm vent pipe vents sewer gases through the roof, preventing siphonage that could empty water from traps.

  – The 110mm vent pipe safely vents sewer gases through the roof and prevents siphonage.
  – By venting sewer gases through the roof, the 110mm vent pipe prevents siphonage.
  – The 110mm vent pipe vents sewer gases through the roof, preventing siphon age that could pull water from traps.

---

4. Key Benefits

• Corrosion Proof: Unlike cast iron, UPVC will not rust or pit over time when exposed to sewer gases ($H_2S$).

• High Flow Rate: The mirror-smooth interior reduces friction, meaning you can often use a slightly lower slope while maintaining flow.

• UV Resistance: Nikasi products are stabilized to withstand sunlight, preventing the brittleness often seen in cheaper “white” PVC pipes used outdoors.

Pro Tip: When installing the 110mm Push-Fit system, always use a silicone-based lubricant on the rubber ring. Never use grease or oil, as these can degrade the rubber seal over time.
