Tee Female 32×1″ Brass RAKtherm PPRc

Description

Female Tee 32 x 1″



RAKtherm imported PPRc, Food graded third generation Poly propelene Random with Co-polymer
materials. contact 0322-3540656





What is Tee Female 32×1″ Brass RAKtherm PPRc ?

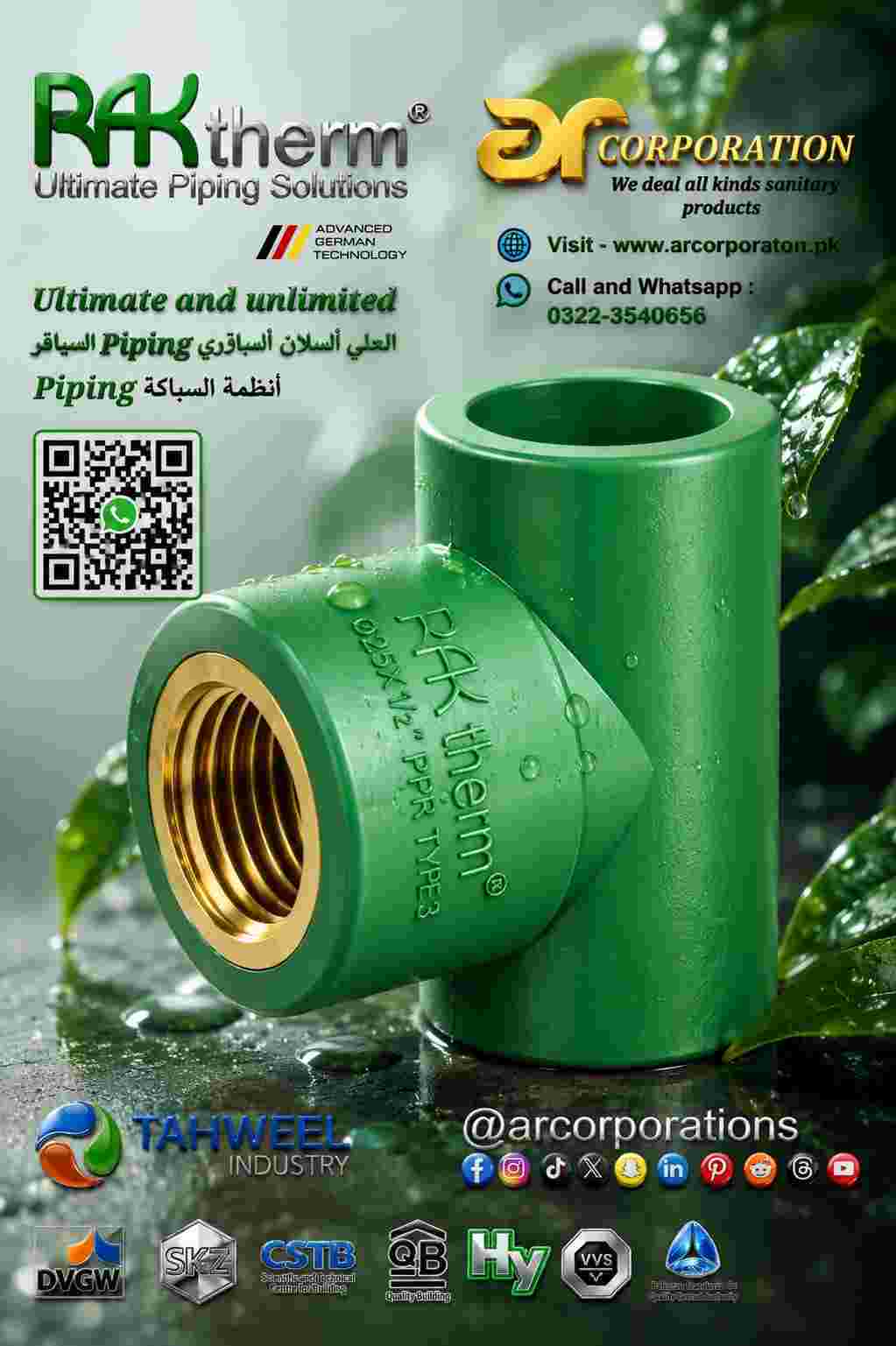

The Tee Female 32 × 1″ Brass RAKtherm PPRc PN 25 is a hybrid PPRc fitting designed to connect three pipelines, where two 32 mm PPRc socket ends are joined by heat fusion and the third branch features a 1-inch female brass threaded connection. It is used to connect PPR piping systems to threaded metal components such as valves, pumps, water meters, pressure gauges, and plumbing fixtures in hot and cold water and HVAC applications. RAKtherm manufactures a wide range of PN 25 PPR pipes and brass fittings for these systems.

Product Description

• Brand: RAKtherm
• Country of Origin: United Arab Emirates (UAE)
• Product Type: Female Brass Tee (Threaded Tee)
• Model: 32 mm × 1″
• Material:
  • Body: Food-grade PPRc (Polypropylene Random Copolymer)
  • Thread Insert: High-quality brass
• Pressure Rating: PN 25
• Connection Type:
  • Two 32 mm socket fusion connections
  • One 1-inch female brass threaded outlet
• Application: Potable water, plumbing, HVAC, heating and cooling systems, industrial water distribution.

Technical Specifications Tee Female 32×1″ Brass RAKtherm PPRc

Features

• Food-grade material suitable for drinking water.
• Heavy-duty brass female thread provides a secure connection to metal fittings.
• Leak-proof socket fusion joints.
• Excellent resistance to corrosion, rust, and scale.
• Smooth internal bore minimizes pressure loss.
• High mechanical strength and dimensional stability.
• Low thermal conductivity reduces heat loss.
• Lightweight and easy to install.
• Long service life with minimal maintenance.

HVAC Applications

The Tee Female 32 × 1″ Brass is commonly used in:

• Chilled water distribution systems
• Heating water pipelines
• Fan Coil Unit (FCU) connections
• Air Handling Unit (AHU) piping
• Boiler installations
• Heat pump systems
• Central heating systems
• Commercial HVAC water circulation
• Mechanical rooms requiring threaded valve or instrument connections.

Hot & Cold Water Supply Applications

Suitable for:

• Residential plumbing
• Apartments and villas
• Commercial buildings
• Hotels
• Hospitals
• Schools and universities
• Industrial facilities
• Potable water distribution
• Water treatment plants
• Pump rooms and utility connections.

Installation Procedure

1. Cut the 32 mm PPR pipe squarely using a PPR pipe cutter.
2. Remove burrs and clean the pipe ends.
3. Heat both the pipe and the PPR socket using a fusion welding machine at approximately 260°C.
4. Insert the pipe into the fitting without twisting and hold until the joint cools.
5. Wrap PTFE (Teflon) tape or apply an approved thread sealant to the 1-inch male threaded component.
6. Tighten the threaded connection with an appropriate wrench without overtightening to protect the brass insert.
7. Allow the fusion joints to cool completely before pressure testing.
8. Perform a hydrostatic pressure test before commissioning the system.

Advantages

• Provides a reliable transition between PPR piping and threaded metal equipment.
• Suitable for both hot and cold potable water systems.
• Hygienic, non-toxic, and food-grade construction.
• Strong brass insert resists thread wear and mechanical stress.
• Leak-free fusion joints improve system reliability.
• Excellent performance in high-pressure PN 25 installations.
• Compatible with valves, pumps, water meters, pressure gauges, and other threaded accessories.
• Designed for long-term operation with minimal maintenance.
