Description

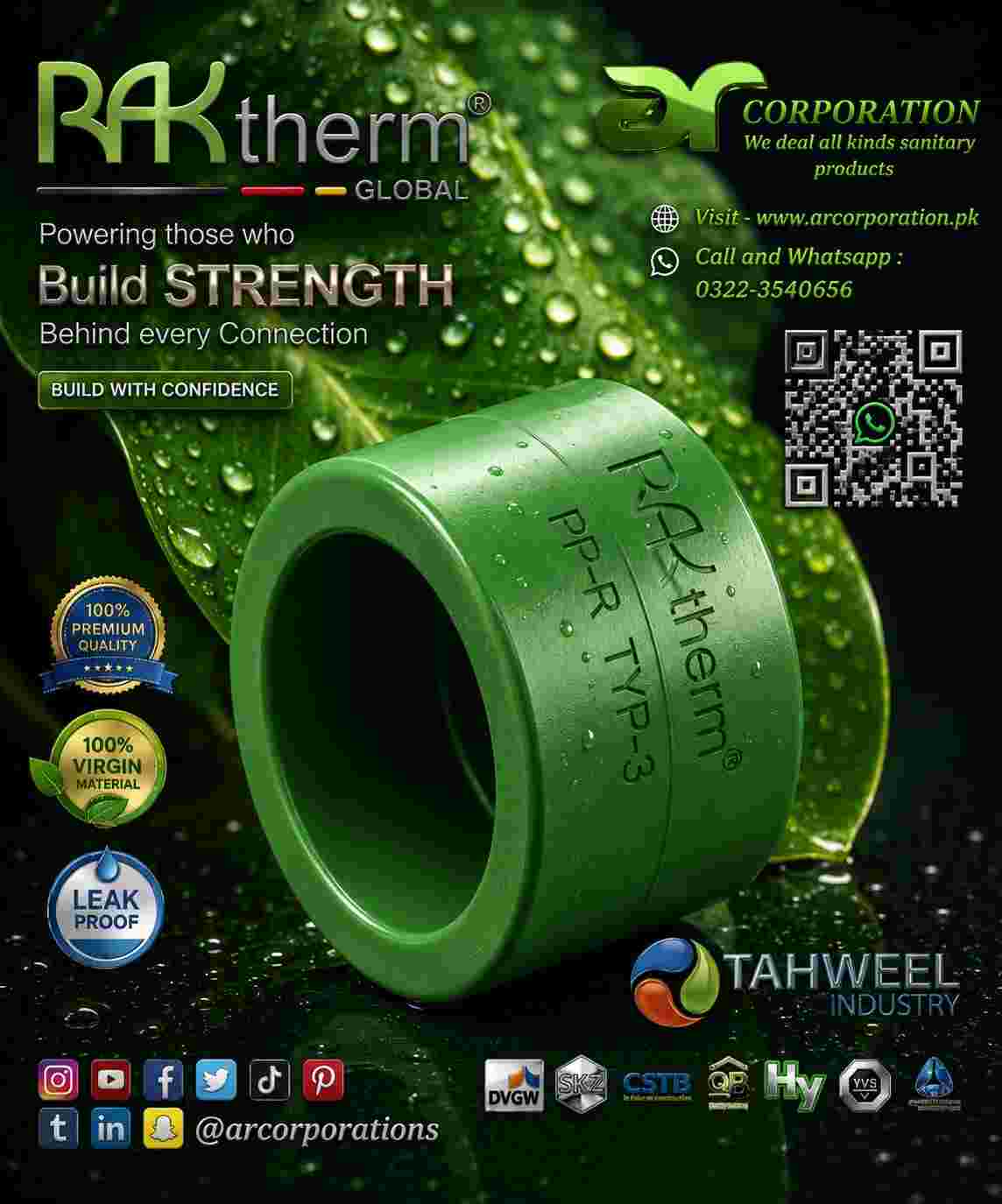

End Cap 75mm
RAKtherm imported PPRc, Food graded third generation Poly propylene Random with Co-polymer
materials. contact 0322-3540656
What is End Cap 75mm RAKtherm PPRc ?
The RAKtherm PPRc End Cap 75mm PN 25 is a high-pressure polypropylene fitting imported from the UAE, designed to seal the ends of PPR pipelines in hot and cold water supply and HVAC systems. It is durable, non-toxic, corrosion-resistant, and compliant with ISO/DIN standards, making it suitable for residential, commercial, and industrial applications.
🔧 Product Description
- Type: PPR End Cap
- Material: Polypropylene Random Copolymer (PPRc, Type 3)
- Size: 75 mm nominal diameter
- Pressure Rating: PN 25 (25 bar at 20°C; derates to ~4–5 bar at 95°C)
- Color: Green or Grey (depending on brand batch)
- Origin: Manufactured in UAE, imported for Pakistan market
- Standards Compliance: ISO 15874, DIN 8077/8078, DIN 16962
📊 Technical Specifications
| Attribute | Details |
|---|---|
| Nominal Diameter | 75 mm |
| Pressure Rating | PN 25 (25 bar at 20°C) |
| Temperature Range | -20°C to +95°C |
| Connection Type | Socket fusion welding |
| Wall Thickness | ~12.5 mm (SDR 7.4 equivalent) |
| Certifications | Lead-free, UV-stabilized, potable water safe |
| Service Life | 50+ years under proper installation |
🛠 Installation Guidelines
- Preparation: Clean and chamfer pipe ends before welding.
- Fusion Welding: Use a calibrated socket fusion machine at 260–280°C.
- Cooling Time: ~10–12 minutes for 75mm fittings.
- Pressure Testing: Test system at 1.5× operating pressure after installation.
- Storage: Keep fittings in shaded, dry areas to avoid UV damage.
🌍 Usage Applications
- Hot & Cold Water: Domestic plumbing, potable water supply.
- HVAC Systems: Chilled water, heating loops, radiant floor heating.
- Industrial Use: Chemical-resistant pipelines, compressed air (with derating).
- Commercial Buildings: Hospitals, hotels, offices, and large-scale water distribution.
⚠️ Risks & Considerations
- Pressure Derating: At high temperatures (95°C), PN 25 reduces to ~4–5 bar.
- UV Sensitivity: Though UV-stabilized, prolonged direct sunlight exposure can weaken material.
- Installation Errors: Over-insertion during welding may cause bead formation and flow restriction.
- Compatibility: Must match pipe diameter and PN rating to avoid leaks or failures.
✅ Key Advantages
- Non-toxic & potable water safe
- Corrosion and scaling resistant
- Long service life (50+ years)
- Lightweight and easy to install
- High durability under pressure and temperature variations
