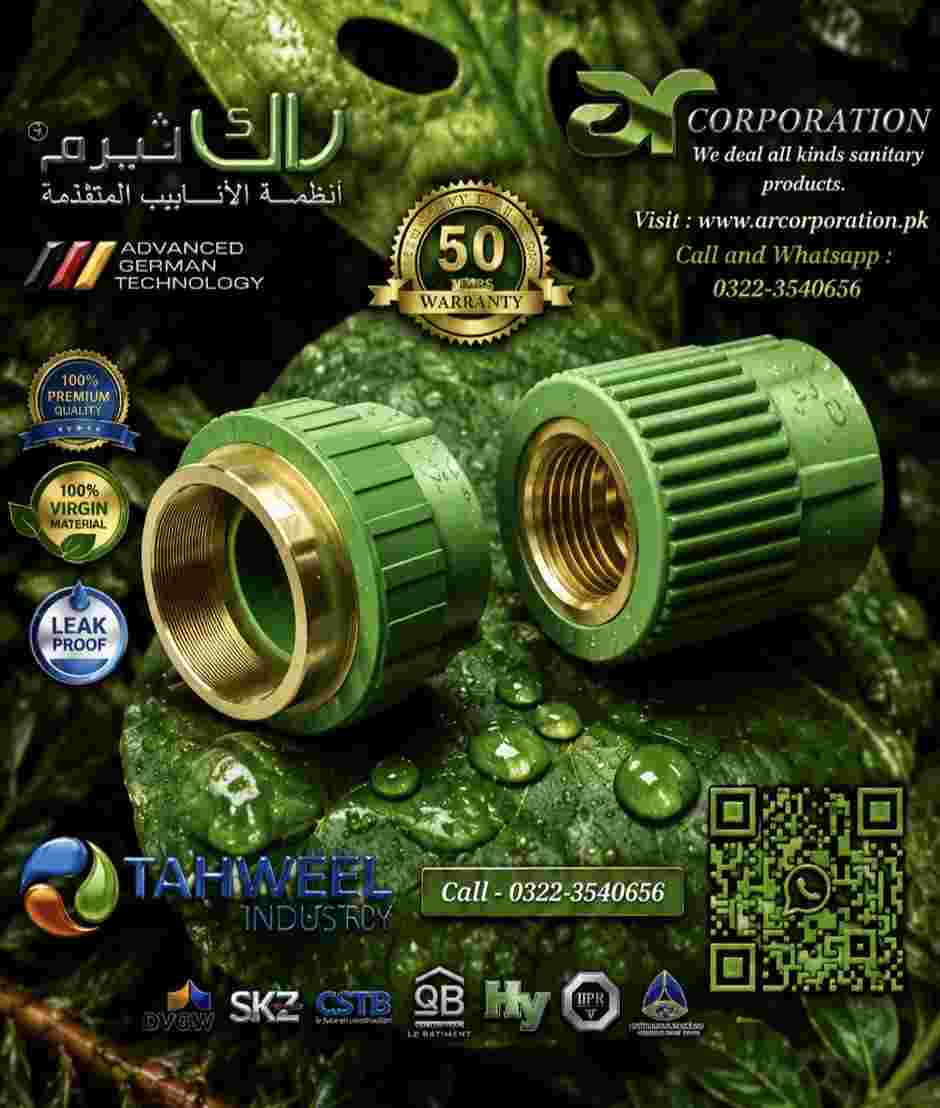

Female Socket 32×1″
Brass Female Adaptor (threaded) made in UAE Food graded third generation . 25mm to 110mm diameter. Distributor contact 0322-3540656
What is Female Socket 32×1″ RAKtherm PPRc ?
The Female Socket 32×1″ RAKtherm PPRc PN 25 is a third-generation food-grade polypropylene random copolymer (PPRc) fitting imported from the UAE for high-pressure hot and cold water HVAC systems.
Key Details Female Socket 32×1″ RAKtherm PPRc
Description
This fitting has two distinct ends:
-
32 mm socket end: For fusion welding into PPRc pipe systems
-
1″ female brass thread: For connecting to metallic threaded equipment (valves, pumps, boilers, taps, filters)
It enables transition from PPRc piping to metal components without changing pipe diameter, making it essential for HVAC water supply, potable water systems, and industrial fluid distribution.
RAKtherm PPRc is corrosion-resistant, does not affect water taste/smell, and is 100% recyclable.
Detailed Specifications
Installation (Socket Fusion Welding)
Tools Required: PPRc socket fusion welding machine (200–230°C), pipe cutter, deburring tool, welding gloves
Fusion Time Chart for 32 mm:
Installation Steps:
-
Cut pipe: Square cut, clean, deburr outside/inside
-
Mark depth: 16.5 mm on pipe end
-
Heat: Insert pipe and fitting into welding tool simultaneously for 8 sec
-
Join: Remove tool, insert pipe fully into socket, hold for 6–7 sec without rotation
-
Cool: Let joint cool naturally for 4 min before pressure testing
-
Thread connection: Screw 1″ metal component into female thread (use thread seal tape if needed)
⚠️ Critical: Never reduce cooling time; ensure proper alignment during fusion to avoid weak joints.
Usage & Applications
Why PN 25? Higher pressure rating than PN 20/PN 16—suitable for high-pressure systems and high-temperature applications.
This fitting is widely available in Pakistan through UAE importers (e.g., AR Corporation, distributor contact: 0322-3540656).
